Getting Started

This document is for Net Beans based IReports (> Version 3.00). For the Classic version look at re2jClassic.htm.

Introduction

This package makes it easy to design and run reports from Fixed Width Data files including both Cobol and Mainframe Cobol files.

This package provides

1. A Jasper-Reports JRDataSource for reading Fixed Field Width Data files (both Text and binary) for
   • Unix
   • Windows
   • Z-OS (IBM Mainframe).

2. A Jasper-Reports JRDataSourceProvider to make it easy to define reports in Jasper-Reports report designers like iReports.

This document describes using the package with iReports. Following is an example of a Report (for a mainframe Cobol file) in iReports:

Requirements

Jasper	Jasper-Reports or iReports (which includes JasperReports) must be installed. This document assumes iReports is installed.
RecordEditor	RecordEditor must be installed.

Installation

Following are the steps to install the package with iReports. Installing with Jasper-Reports is the same (just different install directory):

1. Install iReports (if not already installed).

2. Install RecordEditor If not already installed I would suggest using the following




   Environment	Download Version to Use
   Windows & Ms-Access	RecordEdit_Installer_for_MSAccess_065.exe
   Windows	RecordEdit_Installer_for_HSQL_v065.exe
   Linux	RecordEdit_Installer_for_HSQL_065.jar

3. Unzip the re2Jasper zip file into a re2jasper directory.

4. Copy the following jars from the <RecordEditor install directory>/lib Directories to the re2jasper directory.
   • JRecord.jar
   • RecordEdit.jar
   • Properties.zip
   • Relevent JDBC jar -
     • nothing (Ms-Access version)
     • What ever JDBC jar you used in the Generic version.

   Note: Do not copy the LayoutEdit.jar from <RecordEdit install directory>;/lib

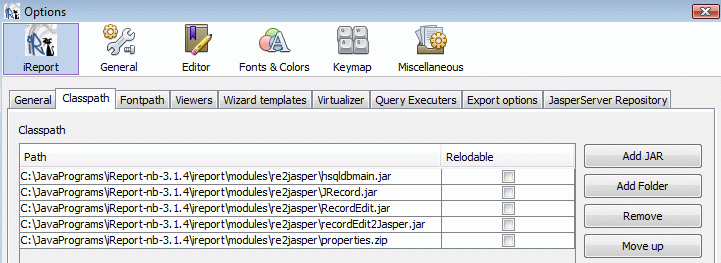

5. Next you need to Add the Jars / Zip files to the ClassPath. To do this

   1. Start IReport,

   2. Select Tools >>> Options

   3. Select the IReport Icon and the ClassPath tab.


   4. Enter the RecordEditor / re2jasper jars/zip files in to the panel as above.

Jasper Interfaces

JRDataSource

Abstract representation of a Jasper-Reports data source (i.e. source of the data to be written to the report). This package contains a class RecordDataSource which implements JRDataSource

JRDataSourceProvider

Abstracts the means of creating and disposing a data source. This interface is meant to be the standard way to plug custom data sources into GUI designers. Typically the report developer will implement this interface to create and return a configured data source of the desired type and then configure the designer to use this implementation. This package contains a class RecordDataSourceProvider which implements JRDataSourceProvider

Supplied Java Source

Class	Purpose
BaseDataSourceProvider	Abstract JRDataSourceProvider
CopybookToLayout	Class to read a Cobol Copybook into the internal Record-Layout definition.
JasperConst	Various directories used. You should Check this class before running any of java examples.
LayoutOptions	Options class.
RecordDataSource	Most important class in the package. It reads a File and supplies the data in it to Jasper-Reports. It is a Jasper-Reports JRDataSource.
RecordDataSourceProvider	Interface to Jasper Reports designers like iReports. It is a Jasper-Reports JRDataSourceProvider.
Zcompile	Sample program to compile a jasper report.
ZRunCobolRpt	Example of running jasper reports with Report Layouts read from Cobol Copybooks.
ZRunRpt	Example of running jasper reports with Report Layouts read from

Supplied Example Reports

Sample data files for these reports are in the <RecordEditor install directory>/SampleFiles

Report	Layout	Description
amsPO_Chart1.jrxml	ams PO Download	Chart Report built from a unix Text file
amsPO_Chart2.jrxml	ams PO Download	Chart Report built from a unix Text file
amsPo_rpt2.jrxml	ams PO Download	Chart Report built from a unix Text file
amsPO_Chart1.jrxml	ams PO Download	Chart Report built from a unix Text file
DTAR020_chart1.jrxml	DTAR020	Chart Report built from a Mainframe (Z-OS) Binary file
DTAR020_rpt_1.jrxml	DTAR020	Report built from a Mainframe (Z-OS) Binary file
DTAR020_rpt_2.jrxml	DTAR020_rpt_2	Report built from a Mainframe (Z-OS) Binary file

Sample files:

Layout	Sample Files
ams PO Download	Ams_PODownload_20041231.txt   Ams_PODownload_20050101.txt
DTAR020	DTAR010_Chart.bin   DTAR020.bin

Using with iReport designer

This package can be used with iReports report designer, following is a description of how to do so.

Defining RecordDataSourceProvider

The class RecordDataSourceProvider implements JRDataSourceProvider ands acts as the interface between iReports and the RecordDataSource (file based data source for a report).

Steps:

• Start iReports
• Click the define Datasource button iReports

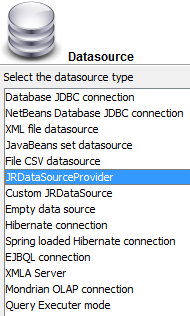

• The following screen should be displayed:

• Next press the New button and fill in the connection properties screen as follows.

  Note: The class name is net.sf.RecordEditor.Jasper.RecordDataSourceProvider

Using RecordDataSource in a Report

First you need to create a report (File >>> New), then

1. In the Report Inspector Right Click on the report Name and select Edit Query



2. Select the DataSource Provider Tag.


3. Press the Get fields from datasource to get the RecordEditor layout selection screen



   Follow is the description of the fields on the screen:

   Field	Description
   System	The Record Layouts can be grouped into different systems. This Combo Box is used to select a specific System.
   Record Layout	The Record Layout used to format the file. Only layouts belonging to the selected System (above) are displayed. Note: A Record Layout describes the format of a file, each layout consists of either A series of fields. A serious of record (which intern consist of a series of fields).
   Define fields as numeric	If this check box is ticked, fields defined as numeric in the RecordEditor DB will be defined as numeric in the Report (otherwise they are defined as String which is faster). If performance is an issue, unselect this option and define only those fields that need to be numeric as numeric.
   Report Record	When a file consists of more than one record, you would use this combo box to select which record should be used in the report. i.e. If file consists of PO record Product record 1 Store Record 1 Store Record 2 ... Store Record n Product record 2 Store Record 1 ... Store Record n etc PO record 2 Product record's You could choose Store if this is a store level report. Note: The last record of every record type is available via [record name].[Field Name]
   Record	In this List box you select the records that contain fields you want to use in the report. Only fields from the selected Records will be returned to iReports.

4. Press the go button to get the field selection screen



5. Select the fields you want and press ok.

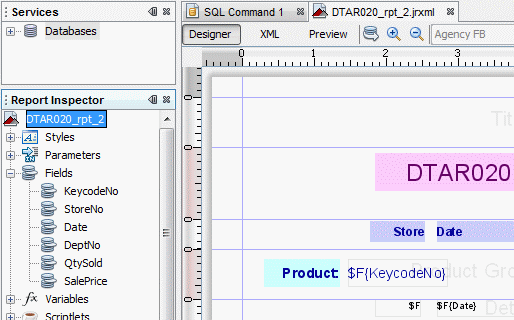

6. Next if you click on the Objects library and then double click on Fields you should see the fields you selected.



7. Finally you can click on a field and drag it to the report

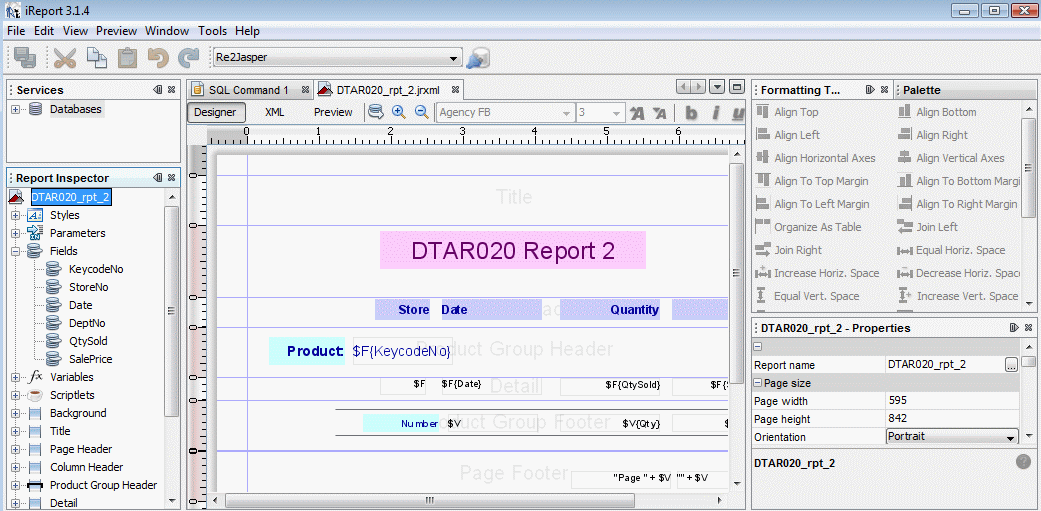

Designing a file based in iReports:

Running a Report in iReports

To run the report:

1. To run a report click on the preview tag



2. Enter File name and the select the appropriate Layout and record and press go



Jasper interface

When defining a field in Jasper, normally you would supply the RecordEditor field name in the fieldDescription tag as below.

In the following code, the Jasper field PackQty is associated with the RecordEditor field Pack Qty.

When the Jasper field name is the same as the RecordEditor field you do not need to use the fieldDescription tag as below.

For files with more than one type of Record the RecordDataSource stores the last Line of each Record Type for your use. You can access a field in a specific record by using a field name of Record Name.Field Name. i.e. The following example accesses the field beg01 code in the last ams PO Download: Header Line:

Running Reports from Java

To run a report using re2jasper you must have the following jars in the classpath (or for eclipse as external jars).

• All Jasper reports libraries (and supporting libraries).
• RecordEdit.jar and LayoutEdit.jar from the RecordEditor package.
• The JDBC driver (for HSQL it is hsqldbmain.jar).

To run directly from a Cobol Copybook you will also need

• cb2xml.Jar from the RecordEditor package.

Using RecordEdit Layouts

The following code from ZRunRpt illustrates running a report using the RecordDataSource and the standard (Database Based) RecordEditor Layout definitions.

Note: Lines 4 and 5 read in the specified RecordEditor layout.

   1:            JasperReport jasp;
   2:            String fileName;
   3:            String inputFileName = SAMPLE_DIRECTORY + dataFile;
   4:            CopyBookDbReader copybookReader  = new CopyBookDbReader();
   5:            LayoutDetail copyBook = copybookReader.getLayout(layout);
   6:
   7:            System.out.println(">>> " + rpt + "  ~  " + layout + "  -  " + dataFile);
   8:
   9:            try {
  10:                jasp = JasperCompileManager.compileReport(REPORT_DIRECTORY + rpt + ".jrxml");
  11:                fileName = REPORT_DIRECTORY + rpt + ".pdf";
  12:                Map parameters = new HashMap();
  13:                RecordDataSource source = new RecordDataSource(copyBook, inputFileName);
  14:
  15:                if (!"".equals(record)) {
  16:                    source.setRequiredRecord(copyBook.getRecordIndex(record));
  17:                }
  18:
  19:                parameters.put("ReportTitle", rptTitle);
  20:
  21:                byte[] b = JasperRunManager.runReportToPdf(jasp, parameters, source);
  22:                FileOutputStream s = new FileOutputStream(fileName);
  23:                s.write(b);
  24:                s.close();
  25:            } catch (JRException e) {

Using Cobol Layouts

Following is an example (from ZRunCobolRpt) of running a report from a Cobol Copybook. When running from Cobol you are limited to files with only one record type.

Note: Lines 6 to 13 read in the specified RecordEditor layout.

   1:        JasperReport jasp = null;
   2:        String fileName = null;
   3:        String inputFileName = SAMPLE_DIRECTORY + dataFile;
   4:
   5:        try {
   6:            CopybookToLayout cobolConv = new CopybookToLayout();
   7:            cobolConv.setBinaryFormat(machine);
   8:            LayoutDetail copyBook = cobolConv.readCobolCopyBook(
   9:                    JasperConst.COBOL_DIRECTORY + layout + COBOL_SUFIX,
  10:                    CopybookToLayout.SPLIT_NONE,
  11:                    Common.LINE_SEPERATOR,
  12:                    null,
  13:                    Common.FIXED_LENGTH_IO,
  14:                    new TextLog()
  15:            );
  16:            jasp = JasperCompileManager.compileReport(REPORT_DIRECTORY + rpt + ".jrxml");
  17:            fileName = REPORT_DIRECTORY + rpt + ".pdf";
  18:            Map parameters = new HashMap();
  19:            RecordDataSource source = new RecordDataSource(copyBook, inputFileName);
  20:
  21:            byte[] b = JasperRunManager.runReportToPdf(jasp, parameters, source);
  22:            FileOutputStream s = new FileOutputStream(fileName);
  23:            s.write(b);
  24:            s.close();
  25:        } catch (JRException e) {

To run with windows / unix text files (on a windows / unix box) the machine on line 6 above becomes CopybookToLayout.FMT_INTEL For IBM Mainframe files use CopybookToLayout.FMT_MAINFRAME.

Example Report

• Sample Report generated from a file containing 3 record types, 2 ("PO Header Record" and "PO Detail Record") of which are used in the report.
• Jasper Report definition

PO Header Record

Field_Position	Field_Length	Field_Name	Type
1	2	Record Type	Char
3	5	Sequence Number	Num Assumed Decimal (Zero padded)
8	10	Vendor	Num (Right Justified zero padded)
18	12	PO	Num Assumed Decimal (Zero padded)
30	6	Entry Date	Char
36	8	Filler	Char
44	2	beg01 code	Char
46	2	beg02 code	Char
48	4	Department	Char
52	6	Expected Reciept Date	Char
58	6	Cancel by date	Char
68	1	EDI Type	Char
69	6	Add Date	Char
75	1	Filler	Char
76	10	Department Name	Char
86	1	Prcoess Type	Char
87	2	Order Type	Char

PO Detail Record

Field_Position	Field_Length	Field_Name	Type
1	2	Record Type	Char
3	9	Pack Qty	Num Assumed Decimal (Zero padded)
12	13	Pack Cost	Num Assumed Decimal (Zero padded)
25	13	APN	Num (Right Justified zero padded)
38	1	Filler	Char
39	8	Product	Num (Right Justified zero padded)
72	15	pmg dtl tech key	Char
87	15	Case Pack id	Char
101	50	Product Name	Char
